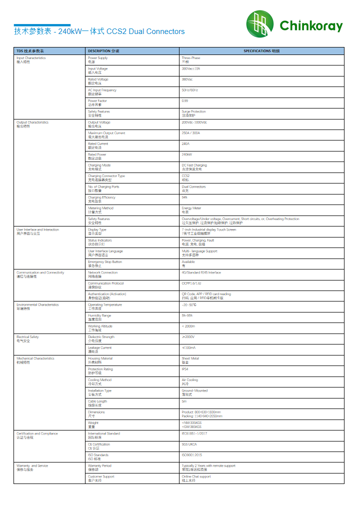

Technical Specification

Technical Features and Overview

• Adopts advanced global constant power charging module with 300-1000V constant power range, maintaining high charging power at low voltage segments for fast charging speed.
• Modular structure design with multiple modules working in parallel; faulty modules exit automatically to enhance user experience.
• Distributed control monitoring unit minimizes risks and improves equipment reliability and safety; user-friendly interface (Chinese/English support), easy touch screen operation, with charging order inquiry and system parameter setting functions.
• Proprietary advanced flexible intelligent control technology intelligently distributes dual-port charging power, comprehensively controlling the charging process based on multiple factors (charger, vehicle, environment, user) to ensure optimal battery performance and extended lifespan.
• Powerful internet capabilities with 4G/Ethernet connectivity, real-time data interaction with backend management system, supporting remote start/stop and payment processing; OCPP1.6 protocol support for significant commercial operation advantages.
• Configurable global POS machine supporting UnionPay, VISA and other credit card payment channels to solve payment issues for overseas commercial charging station operations.

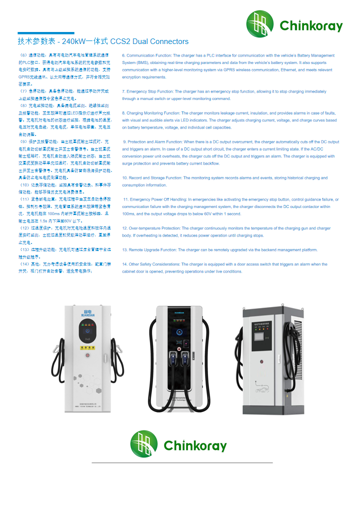

Function Introduction

• Intelligent Charging: Dynamically adjusts charging parameters based on EV BMS data, equipment self-test parameters and server instructions, automatically stops when fully charged.
• Precise Metering: Built-in intelligent energy meter, default installation on output side, adjustable to input side as required.
• Flexible Billing: Supports kWh-based billing with configurable rate periods and billing units; supports contactless IC card and credit card payments.
• Human-Machine Interaction: Color LCD touch screen displaying charging parameters, fault alarms, etc.; supports card swiping, emergency stop operation, with personal information inquiry and setting functions.
• Comprehensive Display: Displays power/charging/fault status, voltage/current, charged energy, battery SOC, estimated remaining time, etc.; administrators can configure device parameters.
• Multiple Communication: PLC interface for BMS communication, GPRS/Ethernet support for upper monitoring system communication, meeting encryption requirements.
• Emergency Protection: Emergency stop function, leakage current monitoring, insulation monitoring, over temperature protection, etc.; disconnects DC output within 100ms and reduces voltage below 60V within 1.5s in emergency situations.
• Record Storage: Stores alarm records, event logs and historical charging consumption information.
• Remote Upgrade: Remote device program upgrade via backend management platform.
• Safety Protection: Equipped with access control switch, automatic alarm when cabinet door is opened to prevent live operation.
